45/5 uF 45+5 MFD 370V or 440V Dual Run Starting Round AC Capacitor

Description

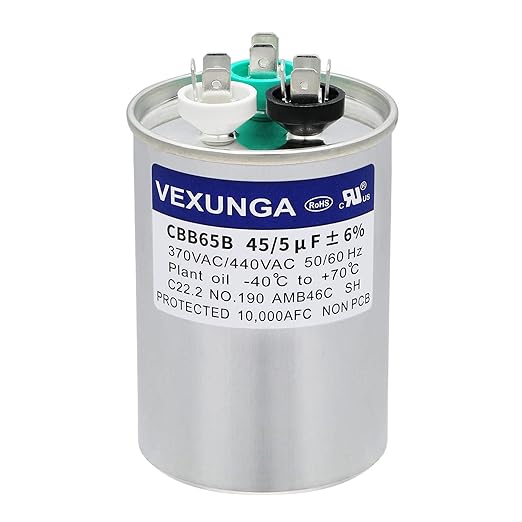

VEXUNGA 45+5 uF ±6% 370/440 VAC CBB65 dual run start capacitor replacement for BOTH 370 & 440 Volt capacitors.

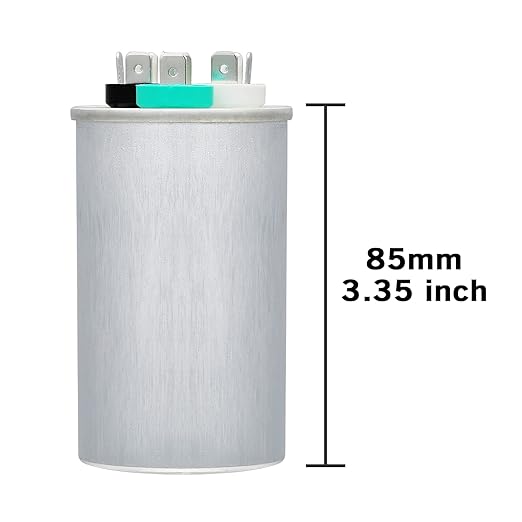

45/5 MFD Capacitor size measures ( 2.36inch / 60mm ) in Diameter x ( 3.35inch / 85mm ) in Height.
Operating temperature: -40℃ to +70℃/-104℉ to +158℉. Frequency: 50/60 Hz. Safety rated: 10,000 AFC – Available Fault Current.
Compliant with the TOUGHEST U.S. standards for AC motor run capacitors including EIA-456-A Specifications and IEC 60252-1:2001 – UL & CUL Listed.
45/5 uF Capacitor Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262.

A capacitor is an electric component that temporarily stores an electrical charge and AC capacitor is a key component to start air conditioner motors.
A dual run capacitor supports “TWO” electric motors, one section for the condenser fan motor and the other for the compressor motor. Beacause of technological innovation, the dual run capacitor can saves space by combining two capacitors into one case.

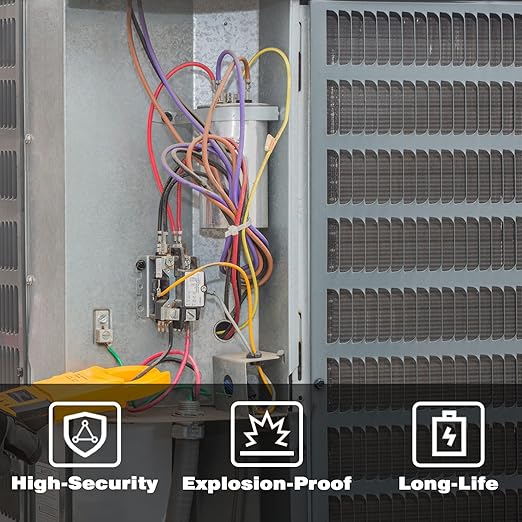

Round cylinder-shaped dual run capacitors are commonly used for air conditioning, it can help in the starting of the compressor and the condenser fan motor.
Air conditioner capacitor is small in size, lightweight, heat resisting and anti-explosion.
Capacitors come in a variety of sizes, but depending on the capacitance (µF or MFD) and the voltage.
VEXUNGA Air Conditioner Capacitor is A Good Choice !!!

Model: CBB65B （Universal model）
Operating temperature: -40℃ to +70℃/-104℉ to +158℉.
Frequency: 50/60 Hz. Safety rated: 10,000 AFC – Available Fault Current.

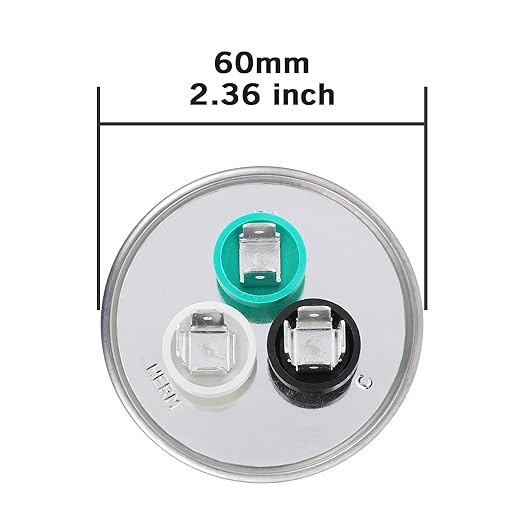

Dual capacitors have three terminals, three terminals on the top are labeled “Herm”/”H” for the compressor motor – White Cap , “Fan”/”F” for the fan – Green Cap , and “C” for the common line – Black Cap.

– The air conditioner’s fan wouldn’t spin – stopped working.
– The air conditioner hummed, but no air flow.
– The ac fan would spin intermittingly and the external pump would not start.
– The air conditioner stopped cooling – the compressor in the condenser maybe not coming on.
– As the capacitor gets older, the motor may get louder and seem to run slower. You can extend the life of your motor if you replace them before they become weak. Eventually the capacitor will become too weak to start the motor, and if the motor won’t start it may be shorted. Timely replacement of capacitors is crucial to air conditioner maintenance.

First of all, Turn off the power to the air conditioner.
Secondly, Take out the ac capacitor.
Finally, Make sure that you know which wire is for which terminal – direct replacement without changing wiring or adapters & Confirm the appropriate capacitance (µF or MFD) and voltage.
What’s important, Replace air conditioner capacitor by yourself that will save you a lot of money and time.

45+5uF capacitor replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262 and so on.
VEXUNGA CBB65B Capacitors meet US AC motor run capacitor standards including EIA-456-A specification and IEC 60252-1:2001 – UL and CUL Listed (E531334) – With authoritative certification, rest assured to use.
Package contains 1piece x VEXUNGA 45+5 uF 45/5 MFD 370/440 VAC Dual Run Start Round AC Capacitor.
